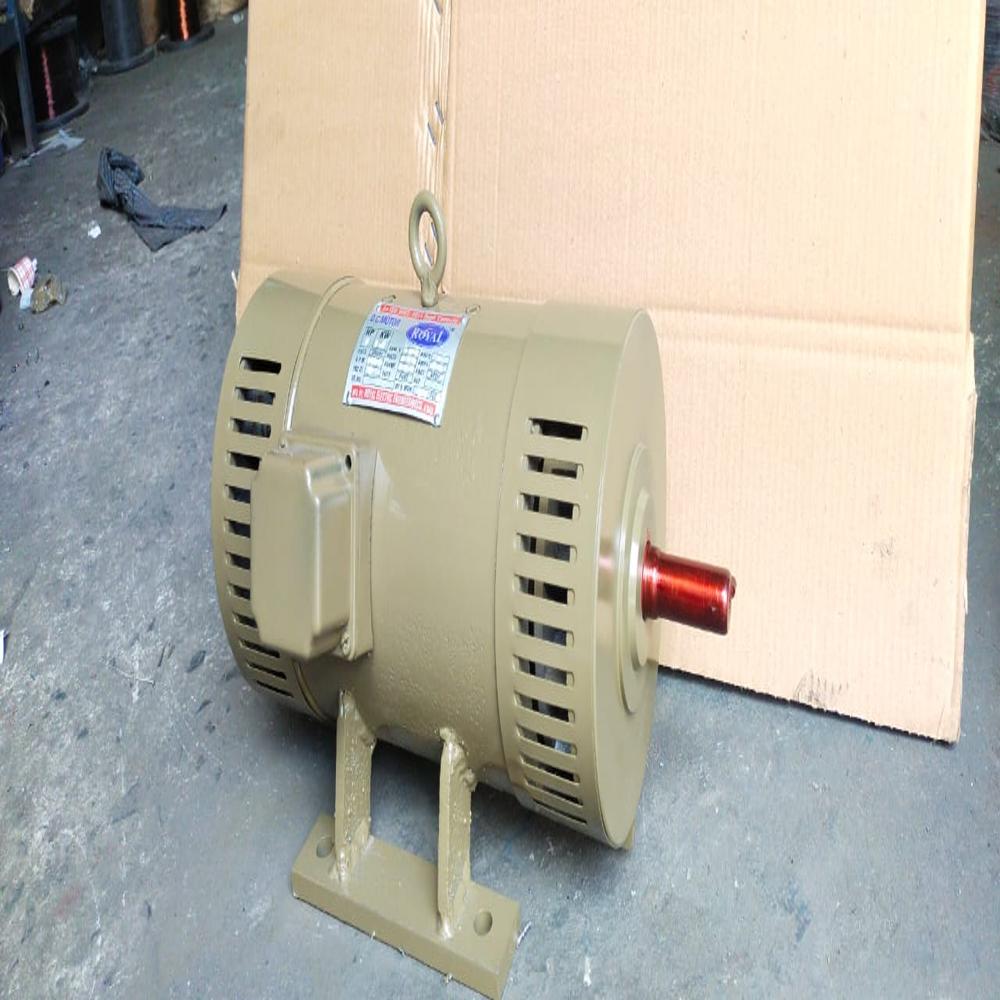

2 HP / 1.5 KW DC MOTOR

2 HP / 1.5 KW DC MOTOR Specification

Horse Power
2 HP

Sealed Type
Open Drip Proof (ODP)

Current Type
DC

Poles Number
4

Standard
ISI / IEC 60034-1

Cooling Method
Self Cooled (IC01)

Bearing Type
Ball Bearing

Features
Heavy Duty, Low Vibration, High Efficiency, Easy Maintenance

Motor Type
DC Motor

Ambient Temperature
-15C to +40C

Torque
9.95 Nm

Voltage
220 V / 230 V / 415 V

Starting Type
Direct On Line (DOL)

Power Rating
1.5 KW

Rated Voltage
220 V / 415 V

Rated Frequency
50 Hz

Noise Level
<70 dB

Efficacy
IE2

Product Type
Industrial DC Electric Motor

Output Power
2 HP / 1.5 KW

Protect Feature
Totally Enclosed

Phase
Single / Three Phase

Speed
1440 RPM

Power
1.5 KW

Color
Beige

Dimension (L*W*H)
450 x 300 x 320 mm (Approx.)

Weight
38 kg (Approx.)

Shaft Diameter
28 mm

Mounting Type
Foot Mounted

IP Rating
ip44

Service Factor
1.15

Application
Industrial Machinery, Pumps, Conveyors

Frame Size
112M

Vibration Level
Within Permissible Limits

Direction of Rotation
Reversible

Insulation Class
Class F

Commutation
Brush Type

Duty Cycle
S1 Continuous

Enclosure Type
Totally Enclosed Fan Cooled (TEFC)

Armature Voltage
220 V

About 2 HP / 1.5 KW DC MOTOR

Power: 2 HP 1.49 kW (rounded to 1.5 kW)
Type: DC motor (can be shunt, series, or compound most commonly shunt for constant speed use)
Supply voltage: typically 220V DC / 240V DC / 110V DC (depends on design)
Speed range: 800 to 3000 RPM (varies by application)

Heavy-Duty Performance for Industry

Designed to meet the rigorous requirements of industrial machinery, this DC motor delivers robust 2 HP (1.5 kW) output. Its totally enclosed fan cooled (TEFC) construction, coupled with a continuous S1 duty cycle and high efficiency (IE2), makes it ideal for pumps, conveyors, and a variety of other demanding applications.

Engineered for Versatility and Reliability

With reversible rotation, direct on-line (DOL) starting, and compatibility with both single and three-phase power, this motor adapts to diverse operational needs. The insulated Class F windings, rugged foot mounting, and a standard-compliant design (ISI/IEC 60034-1) contribute to its safe, reliable operation in varied ambient temperatures.

FAQ's of 2 HP / 1.5 KW DC MOTOR:

Q: How is this 2 HP DC motor typically installed in industrial applications?

A: The motor is designed for foot mounting, making it suitable for stable installation on machinery bases like those found in conveyors, industrial pumps, and factory automation systems.

Q: What advantages does the totally enclosed fan cooled (TEFC) enclosure provide?

A: The TEFC enclosure protects internal components from dust, moisture, and contamination, improving the motor's lifespan and ensuring consistent cooling performance, especially in harsh industrial settings.

Q: When should a reversible rotation feature be utilized?

A: Reversible rotation is particularly beneficial when machinery or conveyor applications may need to change the direction of motion, enabling flexibility in manufacturing or material handling processes.

Q: Where can this DC motor be used considering its protection and insulation features?

A: With an IP44 rating and Class F insulation, the motor is suitable for indoor environments where moderate levels of dust and moisture may be present, such as factories, warehouses, and processing plants.

Q: What is the process for starting this motor, and what are its benefits?

A: The motor uses direct on-line (DOL) starting, which simplifies startup by connecting directly to the power source. This allows for rapid, straightforward operation with minimal complexity and downtime.

Q: How does the IE2 efficiency rating benefit operational costs?

A: IE2 denotes high energy efficiency, which can lead to reduced power consumption and lower energy expenses, providing significant long-term savings in continuous operations.
